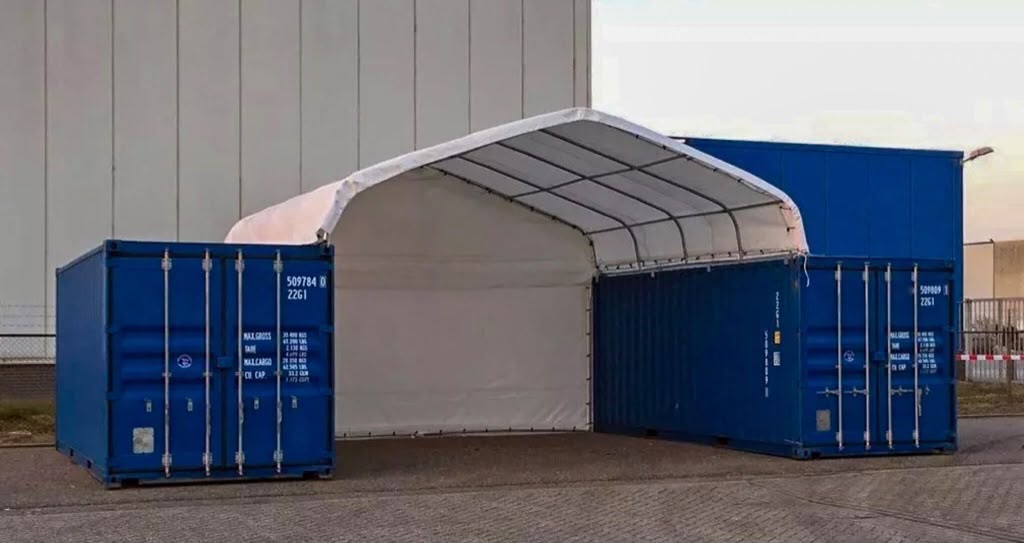

Shelter Between Shipping Containers, 20′ – HZK606, White

SHELTER BETWEEN SHIPPING CONTAINERS, LENGTH 20 FT, WIDTH 19.7 FT, WEIGHT 8.85 OZ/YD², COLOR WHITE.

This is a shelter placed between two or more shipping containers to create a covered space for storage, work, and more.

This setup takes advantage of the modular nature of containers, allowing you to create a temporary shelter at limited cost and lead time.

Shelters between shipping containers are often used in industrial, construction, or logistics settings where covered space needs to be built quickly.

They can be used as temporary warehouses, workshops, equipment sheds, or even temporary offices. They’re made from structural components that connect easily to the containers and create a stable, durable structure.

The benefits of using shelters between shipping containers include quick installation, flexibility, portability, weather resistance, and lower costs compared to traditional structures.

SPECS:

Width: 19.7 ft

Length: 20 ft (for 20′ containers)

Height from the top edge of the container: approx. 23.6 in (side), 70.9 in (ridge)

Height at the highest point: 14.4 ft

Steel structure: S235 steel, electro-galvanized, main profiles ⌀1.9 x 0.08 in

Fabric: HDPE, 8.85 oz/yd² – white

Fire-retardant: per CPAI-84:1995

Temperature resistance: -22°F to 158°F

Maximum wind load: 6.3 lbf/ft² (EN13782, temporary structure)

Maximum snow load: 6.3 lbf/ft². If needed, the container shelter can also be built in areas with higher snow loads. However, care must be taken not to exceed the 6.3 lbf/ft² limit (for example, by heating the shelter in winter or clearing snow off the roof).

INCLUDED:

– Shelter between shipping containers (L x W) 20 ft x 19.7 ft

– Color white, HDPE fabric, 8.85 oz/yd²

– Mounting brackets (8 pieces) for quick installation on containers

NOT INCLUDED IN THE PRICE:

– Shipping

can be ordered for an extra charge:

– front wall with roll-up doors – price + $1,026 (excl. VAT)

– rear wall with roll-up doors – price + $1,026 (excl. VAT)

– front + rear wall with roll-up doors – price + $2,006 (excl. VAT)

Front/rear walls (optional)

Suited to standard containers 8.5 ft in height. Includes ventilation and a 117.3 x 128.7 in (H x W) fabric door with a unique roll-up system for quick, easy, full opening of the fabric door. The roll-up system has a removable handle and is self-locking. The front/rear wall is made of HDPE and includes ventilation reinforcement and a pressure-release opening.

The shelter price does not include shipping costs!

Since this is an oversized shipment stored on pallets, shipping costs run about $160 (excl. VAT) within the Czech Republic. Shipping prices to other countries available on request.

Shipping weight and package dimensions when unfolded (L x W x H):

steel structure – 90.6 x 29.5 x 11.8 in, 385.8 lbs

fabric/material – 39.4 x 19.7 x 9.8 in, 88.2 lbs

Front/rear wall (on-wall): extra — not included in the base price

steel structure – 90.6 x 11.8 x 9.8 in, 121.3 lbs

fabric/material – 23.6 x 19.7 x 9.8 in, 48.5 lbs
